| 4500 | Maximum Speed |
2000xg | Maximum RCF |
12x15ml | Maximum Capacity |
≦55dB(A) | Noise Level(dBA) |
- Efficient cleaning of Lymphocyte in HLA (human leukocyte antigen)
Exam and Red Blood Cell in Freezing Experiment.
- 7 programs set inside to clean lymphocyte and separate red blood
cell.
- Minimum in 7 seconds for speed acceleration and deceleration. Quick
stop function.
|
Technical Specifications:
Speed range(rpm) | 0-4500rpm adjustable | Max Capacity(ml) | 12x15ml |
RCF range (xg) | 0-2000xg adjustable | ACC/DEC | 1-10 rates |
Motor | Inverter motor direct drive | Dimension(mm) | 430*320*220mm |
Noise(dBA) | ≦55dB(A) | Net weight(without rotor) | 18KG |
Power supply | AC220V,50HZ,5A,550W |

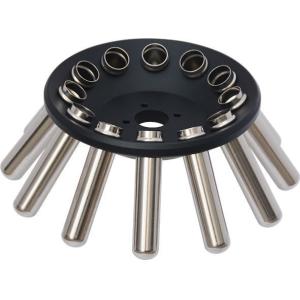

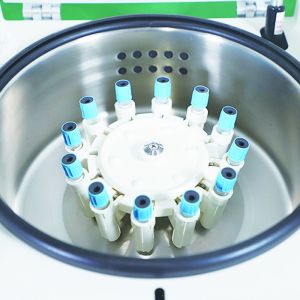

Matched Rotors
For lymph ball cleaning |
Rotor Name | Program | Capacity | Speed r/min | RCF xg | Centrifugal time (variable range) | Applications |
White blood cell washing rotor
| P1 | 12×2ml | 4500 | 2000 | 180seconds (30~300seconds) | Isolation of lymphocytes, isolation of cultured cells |
P2 | 12×1.5ml | 3200 | 1000 | 3 seconds | Platelet removal |
P3 | 12×0.5ml | 3200 | 1000 | 60 seconds (30~120seconds) | Cleaning of the lymphatic bulb |
Red blood cell washing rotor |
Rotor Name | Program | Capacity | Speed r/min | RCF xg | Centrifugal time (variable range) | Applications |
Red blood cell washing rotor
| P4 | 12×2ml | 2100 | 500 | 60 seconds (30~120seconds) | Blood group determination, blood clotting reaction observation |
P5 | 12×2ml | 3200 | 1000 | 15 seconds (5~15seconds) | Cross-fit test, antiglobulin test |
P6 | 12×2ml | 3200 | 1000 | 60seconds (30~120seconds) | Washing of blood cells, extraction of serum and plasma from
dissociated solutions |

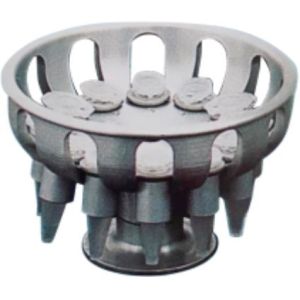

Angle Rotor
| P7 | 12×15-10-5ml | 3200 | 1247 | 60 seconds (5~15 seconds) | Cross-matching blood test |
Description

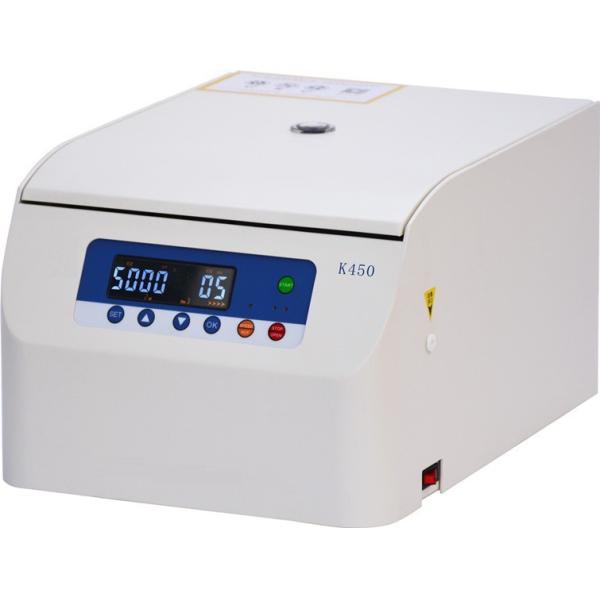

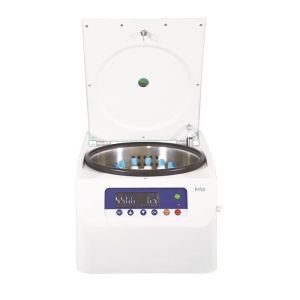

The TCW45 Cell Washing Centrifuge is designed specifically for
lymphocyte cleaning in HLA examinations and red blood cell cleaning
for freezing experiments within laboratory settings. Ideal for
laboratories conducting HLA examinations and freezing experiments,
this centrifuge ensures precise and effective cell washing,
essential for accurate outcomes. Its multifunctional design caters
to diverse applications in the medical and biochemical domains,
making it a versatile choice for laboratories requiring efficient
cell washing capabilities.
Features
Robust Construction: High-quality steel structure with built-in
blast-proof steel chamber and autoclave-able 304# stainless steel
chamber for resistance against detergents and disinfection liquids.
Efficient Drive System: Frequency conversion motor drive with
microprocessor control, utilizing a flexible shaft drive system for
smooth operation, minimal vibration, and low noise.
Convenient Monitoring: LED screen displays Speed, Timer, RCF,
Rotors, Program(Memory), Acceleration& Deceleration information,
and Error codes.
Program Flexibility: Pre-programmed settings with memory for
lymphocyte cleaning and red blood cell separation. Ten speed stages
with rapid acceleration (7 seconds) and deceleration. Fast shutdown
in just 5 seconds.
Seamless Operation: Equipped with double-layer silicone seal rings
for effective sealing. Automatic lid-locking and holding during
rotor operation. Easily exchangeable rotors with a special
connector for quick loading and unloading.
Diagnostic System: Self-diagnostic system integrated with
high-strength chamber-coating and protective features. Automatic
rpm/rcf conversion for enhanced convenience.
Effortless Operation: Automatic lid-locking and holding during
rotor run. Easily interchangeable rotors with a special connector
for swift loading and unloading.
Diagnostic Intelligence: Self-diagnostic system with robust
chamber-coating and protective measures. Automatic rpm/rcf
conversion simplifies operation.
Operational Safety: Automatic lid-locking and holding during rotor
run. Special rotor connector ensures secure loading and unloading.
