Labtech Large Capacity High Speed Refrigerated Centrifuge Machine 21000 rpm

Ask Lasest Price
Brand Name :	Labtech
Certification :	ISO, CE
Delivery Time :	5-8 Work Days
Payment Terms :	Western Union, MoneyGram, T/T
Supply Ability :	100 units/month

Add to Cart

Product Details
Company Profile

Labtech Large Capacity High Speed Refrigerated Centrifuge Machine 21000 rpm

Large Capacity High Speed Refrigerated Centrifuge With Sw...

Product Details

	21000 rpm	Maximum Speed
	31554xg	Maximum RCF
	Swing rotor:4x750ml Angle rotor:6x100ml	Maximum Capacity
	Temperature up to -20℃ Celslus
	Accuracy of ±1℃

Technical Specifications:

Speed range(rpm)	0-21000rpm adjustable	Time range	1-99minutes 59s adjustable
Max Capacity(ml)	4*750ml	Speed accuracy	±10r/min
RCF range (xg)	0-31554xg adjustable	ACC/DEC	1-10 rates
Temperature control range	-20℃～+40℃	Temperature control accuracy	±1℃
Noise(dBA)	≦58dB(A)	Net weight(without rotor)	110KGS
Power supply	AC220V,50HZ,10A, 1000W	Dimension(mm)	680x580x420mm(LxWxH)

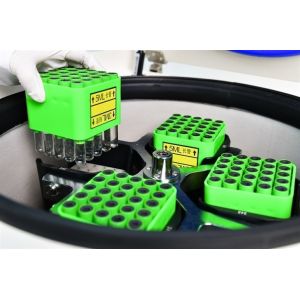

Matched Rotors(Customized rotors are available)

No.	Item	Max. capacity	Max.speed	Max.RCF	Note
NO.1	Angle rotor	12x1.5/2.2ml	21000r/min	31061xg	PP/PC tube
	Adapter	12x0.5ml			PP/PC tube
	Adapter	12x0.2ml			PP/PC tube
NO.2	Angle rotor	12x5ml	21000r/min	31554xg	PP/PC tube
NO.2	Adapter	12x1.5ml	21000r/min	31554xg	PP/PC tube
NO.3	Angle rotor	24x1.5/2.2ml	16000r/min	23800xg	PP/PC tube
	Adapter	24x0.5ml			PP/PC tube
	Adapter	24x0.2ml			PP/PC tube
NO.4	Angle rotor	10x15ml	15000r/min	27418xg	PP/PC tube
	Adapter	10x10ml			PP/PC tube
	Adapter	10x5ml			PP/PC tube
	Adapter	10x1.5ml			PP/PC tube
N0.5	Angle rotor	48×1.5/2.2ml	15000r/min	23394xg	PP/PC tube
	Adapter	48x0.5ml			PP/PC tube
	Adapter	48x0.2ml			PP/PC tube
NO.6	Angle rotor	12×10ml	15000r/min	24130xg	PP/PC tube
	Adapter	12×5ml			PP/PC tube
	Adapter	12x1.5ml			PP/PC tube
NO.7	Angle rotor	6×50ml	15000r/min	22640xg	PP/PC tube
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×1.5ml			PP/PC tube
NO.8	Angle rotor	6×100ml	13000r/min	20406xg	PP/PC tube
	Adapter	6×50ml			PP/PC tube
	Adapter	6×15ml			PP/PC tube
	Adapter	6×10ml			PP/PC tube
	Adapter	6×5ml			PP/PC tube
	Adapter	6×1.5ml			PP/PC tube
NO.9	Angle rotor	8×50ml	13000r/min	20122xg	PP/PC tube
	Adapter	8×15ml			PP/PC tube
	Adapter	8×10ml			PP/PC tube
	Adapter	8×1.5ml			PP/PC tube
NO.10	Swing bucket	4×250ml	4000r/min	3049xg	Round cup
	Adapter	4×9x5/2ml			PP/PC tube
	Adapter	4×5x15/10ml			PP/PC tube
	Adapter	4×50ml			PP/PC tube
	Adapter	4×100ml			PP/PC tube
	Adapter	4×9x1.5ml			PP/PC tube
NO.11	Swing bucket	4×400ml	4000r/min	3049xg	Square cup
	Adapter	4×16x5/2ml			PP/PC tube
	Adapter	4×9x15/10ml			PP/PC tube
	Adapter	4×4x50ml			PP/PC tube
	Adapter	4×100ml			PP/PC tube
	Adapter	4×15x1.5ml			PP/PC tube
NO.12	Swing bucket	4×500ml	4000r/min	3354xg	Round cup
NO.12	Adapter	4×17x5/2ml	4000r/min	3354xg	PP/PC tube
	Adapter	4×8x15/10ml			PP/PC tube
	Adapter	4×3x50ml			PP/PC tube
	Adapter	4×100ml			PP/PC tube
NO.13	Swing bucket	4×600ml	4000r/min	3354xg	Square cup
	Adapter	4×25x5/2ml			PP/PC tube
	Adapter	4×12x15/10ml			PP/PC tube
	Adapter	4×5x50ml			PP/PC tube
	Adapter	4×4x100ml			PP/PC tube
NO.14	Swing bucket	4×750ml	4000r/min	3443xg	Round cup
	Adapter	4×26x5/2ml			PP/PC tube
	Adapter	4×13x15/10ml			PP/PC tube
	Adapter	4×5x50ml			PP/PC tube
	Adapter	4×3x100ml			PP/PC tube
NO.15	Microplate rotor	2×2×96hole	4200r/min	3057xg	Square cup
NO.15	Adapter	2×32×1.5ml	4200r/min	3057xg	PP/PC tube

Description

The VL-200R high-speed refrigerated centrifuge finds its primary application in scientific research and medical laboratories, enabling the separation of substances with varying densities in a sample. Its refrigeration feature plays a crucial role in maintaining sample integrity, allowing precise temperature control throughout the separation process.

Features:

Robust Construction: The centrifuge features a metal housing, metal lid, and stainless steel centrifuge chamber, all autoclave-able and resistant to detergents and disinfectants.

Observation Window: Equipped with an observation window on the lid for speed calibration and noise measurement.

Advanced Control: Utilizes microprocessor control with frequency conversion A.C. motor drive and an LCD display. The display shows essential parameters like Speed, Timer, RCF, Rotors, Program (Memory), Acceleration & Deceleration information, and Error codes.

Efficient Sealing: Designed with double-layer sealing rings for both the centrifuge lid and the instrument, ensuring long-lasting and secure sealing.

User-Friendly Interface: The user interface is intuitive and user-friendly, enhancing ease of operation.

Refrigeration System: Operates on a CFC-free refrigeration system with a pre-cooling feature, providing precise temperature control down to -20°C.

Programmable Functionality: Programmable and storable, capable of storing up to 30 programs. Parameters and combinations remain in memory even after the centrifugation process is completed.

Acceleration & Braking Control: Offers 10 acceleration rates and 10 braking ramps, effectively preventing secondary sedimentation for superior centrifugation results.

Electrical lid interlock ensures the door cannot open when the rotor is running. The machine won’t operate if the lid is open, and error codes are displayed in such cases.
Emergency lid-lock release function activates during power failures, ensuring safety during unexpected interruptions.
Gas hinge for lid drop protection, preventing sudden lid closures.
Multiple safety protocols are in place for overspeed, over-heating (motor and chamber), imbalance, ensuring user and equipment safety.
Silent Operation: Incorporates patented "mute" technology, ensuring noise levels are lower than 58 decibels even at maximum rotational speed.
Automatic Features: Automatic rpm/rcf conversion and rotor identification system that prevents rotor overspeeding.
Compliance: Manufactured in accordance with international safety regulations (e.g., IEC 61010), ensuring compliance with rigorous safety standards.

WHY CHOOSE US

Factory-direct sales at competitive prices.
Premium quality assured with CE & ISO certification.
Robust OEM & ODM customization capabilities.
Guaranteed production and on-time delivery.
Comprehensive after-sales service with complimentary product accessories.
Backed by 15 years of expertise in R&D and production of medical centrifuge machines.
