Matched Rotors | For lymph ball cleaning | | Rotor Name | Program | Capacity | Speed r/min | RCF xg | Centrifugal time (variable range) | Applications | | White blood cell washing rotor | P1 | 12×2ml | 4500 | 2000 | 180seconds (30~300seconds) | Isolation of lymphocytes, isolation of cultured cells | | P2 | 12×1.5ml | 3200 | 1000 | 3 seconds | Platelet removal | | P3 | 12×0.5ml | 3200 | 1000 | 60 seconds (30~120seconds) | Cleaning of the lymphatic bulb | | Red blood cell washing rotor | | Rotor Name | Program | Capacity | Speed r/min | RCF xg | Centrifugal time (variable range) | Applications | Red blood cell washing rotor
| P4 | 12×2ml | 2100 | 500 | 60 seconds (30~120seconds) | Blood group determination, blood clotting reaction observation | | P5 | 12×2ml | 3200 | 1000 | 15 seconds (5~15seconds) | Cross-fit test, antiglobulin test | | P6 | 12×2ml | 3200 | 1000 | 60seconds (30~120seconds) | Washing of blood cells, extraction of serum and plasma from
dissociated solutions | Angle Rotor
| P7 | 12×15-10-5ml | 3200 | 1247 | 60 seconds (5~15 seconds) | Cross-matching blood test
|
4500 | Maximum Speed |
| 2000xg | Maximum RCF |
| 12x15ml | Maximum Capacity |
| ≦55dB(A) | Noise Level(dBA) |
- Efficient cleaning of Lymphocyte in HLA (human leukocyte antigen)
Exam and Red Blood Cell in Freezing Experiment.
- 7 programs set inside to clean lymphocyte and separate red blood
cell.
- Minimum in 7 seconds for speed acceleration and deceleration. Quick
stop function.
|

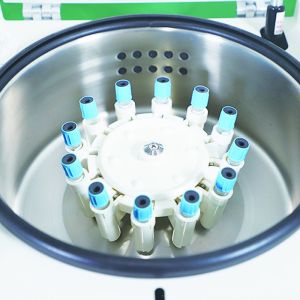

The K450 Cell Washing Centrifuge is designed specifically for
lymphocyte cleaning in HLA examinations and red blood cell cleaning
for freezing experiments within laboratory settings. Ideal for
laboratories conducting HLA examinations and freezing experiments,
this centrifuge ensures precise and effective cell washing,
essential for accurate outcomes. Its multifunctional design caters
to diverse applications in the medical and biochemical domains,
making it a versatile choice for laboratories requiring efficient
cell washing capabilities.
Features
Robust Construction: High-quality steel structure with built-in
blast-proof steel chamber and autoclave-able 304# stainless steel
chamber for resistance against detergents and disinfection liquids.
Efficient Drive System: Frequency conversion motor drive with
microprocessor control, utilizing a flexible shaft drive system for
smooth operation, minimal vibration, and low noise.
Convenient Monitoring: LED screen displays Speed, Timer, RCF,
Rotors, Program(Memory), Acceleration& Deceleration information,
and Error codes.
Program Flexibility: Pre-programmed settings with memory for
lymphocyte cleaning and red blood cell separation. Ten speed stages
with rapid acceleration (7 seconds) and deceleration. Fast shutdown
in just 5 seconds.
Seamless Operation: Equipped with double-layer silicone seal rings
for effective sealing. Automatic lid-locking and holding during
rotor operation. Easily exchangeable rotors with a special
connector for quick loading and unloading.
Diagnostic System: Self-diagnostic system integrated with
high-strength chamber-coating and protective features. Automatic
rpm/rcf conversion for enhanced convenience.
Effortless Operation: Automatic lid-locking and holding during
rotor run. Easily interchangeable rotors with a special connector
for swift loading and unloading.
Diagnostic Intelligence: Self-diagnostic system with robust
chamber-coating and protective measures. Automatic rpm/rcf
conversion simplifies operation.
Operational Safety: Automatic lid-locking and holding during rotor
run. Special rotor connector ensures secure loading and unloading.
Protective Coating: Self-diagnostic system includes a high-strength
chamber-coating and protective features for enhanced safety.
Automatic rpm/rcf conversion enhances operational safety.
Technical Specifications:
| Speed range(rpm) | 0-4500rpm adjustable | Max Capacity(ml) | 12x15ml |
| RCF range (xg) | 0-2000xg adjustable | ACC/DEC | 1-10 rates |
| Motor | Inverter motor direct drive | Dimension(mm) | 430*320*220mm |
| Noise(dBA) | ≦55dB(A) | Net weight(without rotor) | 18KG |
| Power supply | AC220V,50HZ,5A,550W |
WHY CHOOSE US
- Factory-direct sales at competitive prices.
- Premium quality assured with CE & ISO certification.
- Robust OEM & ODM customization capabilities.
- Guaranteed production and on-time delivery.
- Comprehensive after-sales service with complimentary product
accessories.
- Backed by 15 years of expertise in R&D and production of
medical centrifuge machines.
Our Factory Introduction
We boast a standardized production workshop operated by a dedicated
team committed to upholding seriousness and responsibility in every
product manufactured. Our R&D division comprises versatile
professionals including design engineers, technology specialists,
qualified experts, and process control managers. With a stringent
adherence to our quality process control system, our qualified
specialists rigorously oversee the entire production process,
encompassing product design, research and development, testing,
production, quality inspection, and packaging.
Packaging & Shipping
Our product packaging has a long-standing track record of
reliability. Typically, we utilize plywood boxes or cartons with
trays, chosen based on the weight and size of the goods. However,
we're flexible and open to accommodating your preferred packaging
option.
After-Sale WARRANTY
